If you need to integrate your VTEX IO app with external services that aren't covered by VTEX IO's native Clients, creating custom Clients can be a powerful solution. Custom Clients extend the functionality of VTEX IO Client types, offering benefits like caching and versioning. This guide will walk you through the process of creating custom Clients for your VTEX IO apps.

Note that direct communication with APIs is generally discouraged in favor of implementing a dedicated Client. By creating custom Clients, you can extend the capabilities of your VTEX IO applications, enabling seamless integration with a wide range of services.

The diagram below illustrates how an app works with a Client to an external service:

As you develop your custom Client, you will define methods within it. These Client methods are functions responsible for handling the logic needed to execute specific actions. They facilitate interactions with services and APIs, managing requests and responses effectively.

Once you've created your custom Client, you can seamlessly integrate it into your VTEX IO app to execute the implemented methods. While you have the flexibility to incorporate data-handling logic within your Client's methods (e.g., field mapping or data filtering), it's essential to keep the core responsibilities of the Client well-organized.

Before diving into Client development, make sure you have the following prerequisites in place:

• VTEX IO development workspace: Ensure you have a VTEX IO development workspace set up. For more information, refer to Creating a Development workspace.
• TypeScript Familiarity: This guide assumes you have a basic understanding of TypeScript, as we'll be using the node Builder to develop with TypeScript. For more information, refer to TypeScript's official documentation.
• Understanding of Clients: Clients play a crucial role in facilitating interactions between your application and both external and internal services. For more information, refer to Clients.

In this guide, we will create a custom Client example for communicating with GitHub APIs. We'll implement the following methods within our Client:

• getRepo: Fetches a GitHub repository given the owner and repository name.
• getUser: Retrieves GitHub user data based on a specified GitHub username.
• createTag: Creates a new tag on GitHub, taking into account the repository owner, repository, and tag data.
• searchRepos: Searches for GitHub repositories using a specified query.

1. Start a new VTEX IO app using the node builder and open the project using your preferred code editor.

2. Open a terminal and navigate to the node folder of your project.




   _10

   cd node




3. Install the @vtex/api and @octokit/rest packages by running the following command:




   _10

   yarn add @vtex/api @octokit/rest




4. Open the app's manifest.json file and add the necessary Policies. Policies are a set of permissions granted to an app, allowing or forbidding it to execute a given set of actions, such as making requests to an external resource. For this example, we will use the outbound-access policy to communicate with GitHub APIs (api.github.com).

   manifest.json




   _10

   "policies": [

   _10

   {

   _10

   "name": "outbound-access",

   _10

   "attrs": {

   _10

   "host": "api.github.com",

   _10

   "path": "*"

   _10

   }

   _10

   },

   _10

   ]




   Note that incorrect policies may result in request blocking.

1. Create a folder named clients inside the node directory.
2. Create a TypeScript file for your Client in the node/clients directory. Choose a name that easily identifies your Client (e.g., github.ts).
3. Implement the TypeScript class that extends the appropriate Client type from @vtex/api. In this example, we will create the GithubClient. Also, since we are communicating with GitHub's external APIs, we will use ExternalClient.
4. Use InstanceOptions as needed, configuring options such as authentication, timeout, caching, and more based on your requirements.

Ensure to export the Client from its module, either default or named export.

Within your Client TypeScript file, implement the methods for your Client. You can leverage the methods provided by the HttpClient to build your own methods. For example:

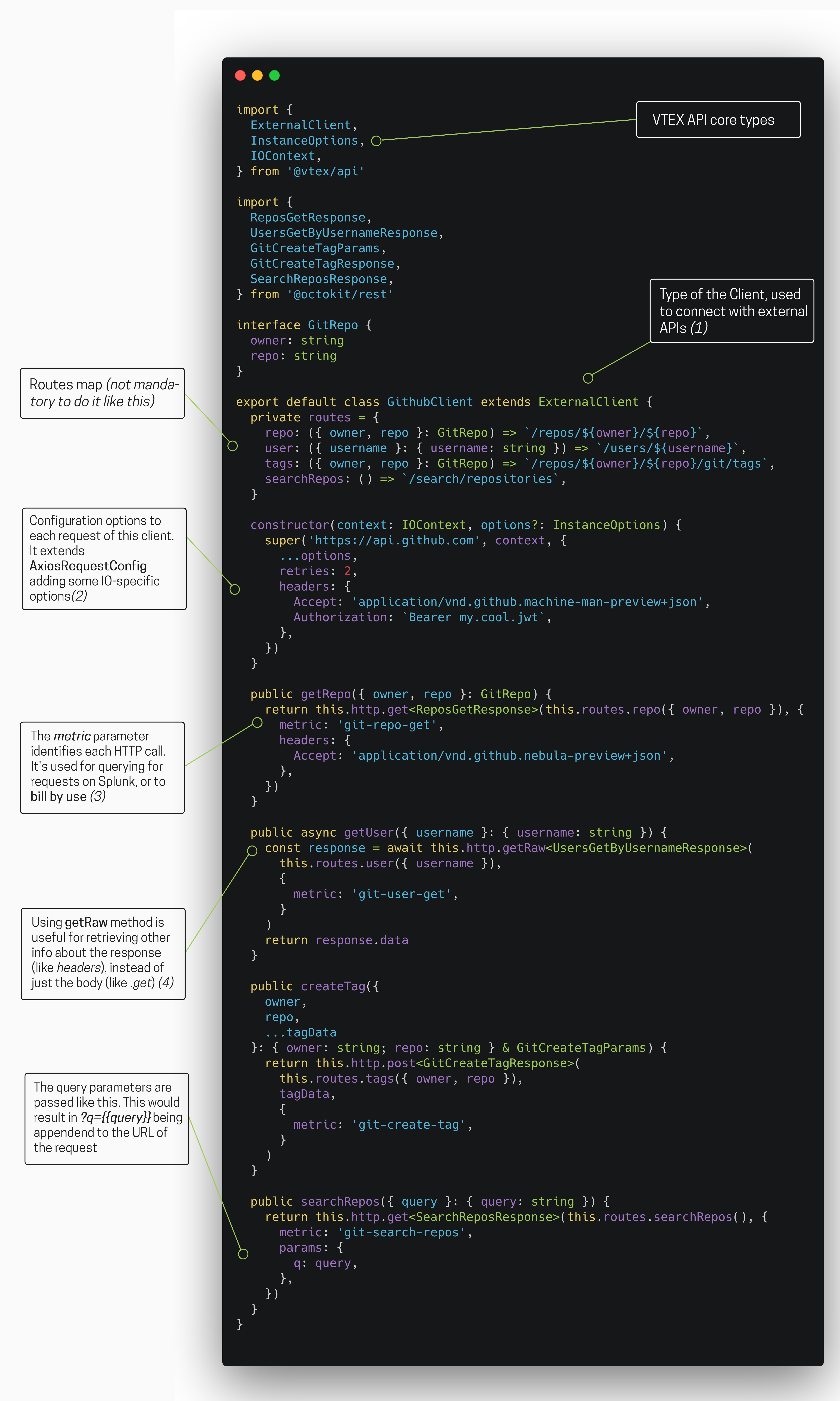

Below we have the complete code example:

Now that you've created your custom Client, you need to organize and export it for use in your VTEX IO service. Follow these steps:

1. Create an index.ts file in the node/clients folder.

2. Inside the index.ts file, import the custom Client you created in the previous step. For example:




   _10

   import GithubClient from "./github.ts";




3. Define a class called Clients that extends IOClients. This class is used to organize and configure your custom Clients. Within the Clients class, declare a get property for each of your custom Clients. This property allows you to access a specific Client by name. In our example, we've created a Client named github that uses the GithubClient class.




   _10

   import { IOClients } from "@vtex/api";

   _10

   import GithubClient from "./github.ts";

   _10

   _10

   export class Clients extends IOClients {

   _10

   public get github() {

   _10

   return this.getOrSet("github", GithubClient);

   _10

   }

   _10

   }




Now that you have developed and exported your custom Client to communicate with the desired service, your Clients can be accessed and used within your VTEX IO service to perform various tasks, such as interacting with external APIs like GitHub. Learn how to use Clients effectively in the Using Node Clients guide.

The @vtex/api package provides a structured way to create Clients.

Type	Use case
AppClient	Communication with other IO Services via HTTP calls.
AppGraphQLClient	Communication with other IO GraphQL services.
ExternalClient	Communication with external APIs.
JanusClient	Communication with VTEX Core Commerce APIs through Janus Router.
InfraClient	Communication with VTEX IO Infra services.

Refer to the diagram below to better understand the relationship between Client types.

Note that context is of type IOContext and options is of type InstanceOptions.

The InstanceOptions table below provides a detailed description of the available options for configuring your HttpClient instance:

Option	Description
authType	Specifies the authentication type.
timeout	Sets the request timeout duration in milliseconds.
memoryCache	Configures a memory cache layer for caching data.
diskCache	Configures a disk cache layer for caching data.
baseURL	Defines the base URL for making requests.
retries	Specifies the number of times a request should be retried in case of failure.
exponentialTimeoutCoefficient	Configures the coefficient for exponential timeout backoff strategy.
initialBackoffDelay	Sets the initial delay before starting exponential backoff retries in milliseconds.
exponentialBackoffCoefficient	Configures the coefficient for exponential backoff retries.
metrics	Specifies an object for accumulating metrics related to requests.
concurrency	Defines the maximum number of concurrent requests.
headers	Sets default headers to be sent with every request.
params	Sets default query string parameters to be sent with every request.
middlewares	Configures an array of middleware functions for request processing.
verbose	Enables or disables verbose logging for requests and responses.
name	Defines a custom name for the instance.
serverTimings	Sets server timings for measuring request and response times.
httpsAgent	Configures the HTTPS agent for making requests over SSL/TLS.

Below is a table outlining the methods available in the HttpClient class:

Method	Description
get(url: string, config?: RequestConfig)	Sends an HTTP GET request. Returns only the response body.
getRaw(url: string, config?: RequestConfig)	Sends an HTTP GET request. Returns all the response data.
getWithBody(url: string, data?: any, config?: RequestConfig)	Sends an HTTP GET request with a request body.
getBuffer(url: string, config?: RequestConfig)	Sends an HTTP GET request and resolves with the response data as a buffer along with the headers.
getStream(url: string, config?: RequestConfig)	Sends an HTTP GET request and resolves with the response as a readable stream (of type IncomingMessage).
put(url: string, data?: any, config?: RequestConfig)	Sends an HTTP PUT request. Returns only the response body.
putRaw(url: string, data?: any, config?: RequestConfig)	Sends an HTTP PUT request. Returns all the response data.
post(url: string, data?: any, config?: RequestConfig)	Sends an HTTP POST request. Returns only the response body.
postRaw(url: string, data?: any, config?: RequestConfig)	Sends an HTTP POST request. Returns all the response data.
patch(url: string, data?: any, config?: RequestConfig)	Sends an HTTP PATCH request. Returns only the response body.
head(url: string, config?: RequestConfig)	Sends an HTTP HEAD request and resolves when the request is complete.
delete(url: string, config?: RequestConfig)	Sends an HTTP DELETE request.
